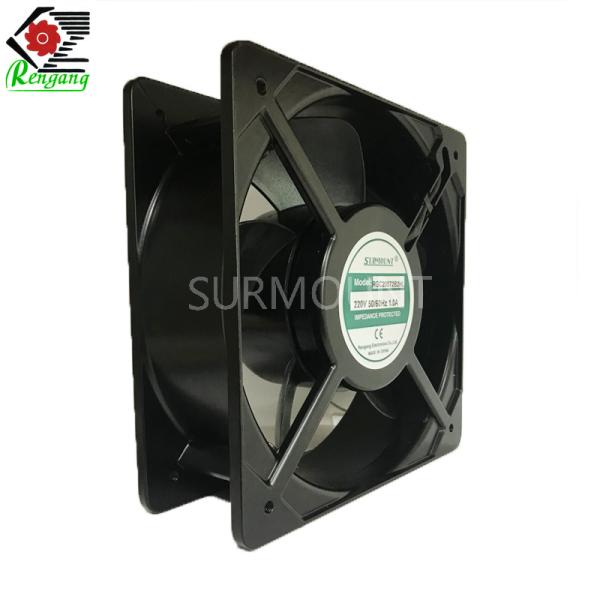

205x205x72mm 220V AC Axial Cooling Fan Capacitor Type 205mm Cabinet Cooling Fan With 690CFM Large Airflow
What is an AC axial fan?
Axial AC fans are a type of fan that blows air along the axis of the fan—that is, the fan's curved blades force air to move in parallel with the shaft on which the blades rotate. ...
Some of the typical applications for AC cooling fans include Industrial equipment. Manufacturing machines. White goods.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
All-Metal Cooling Fan RGC20572B
Product Description
| Model | RGW20572B1H, RGW20572B2H |
| Nominal Voltage(V) | 100~120V, 220~240V |
| Nominal speed (RPM) | 2800/3200RPM |
| Airflow(CFM) | 560/690CFM |
| Color | Black |
| Bearing Type | Dual ball |
| Power Source | Household Electrical, Commercial Power |
| Impeller | 7 |
| Motor | Capacitor-Run External rotor induction |
| Motor Protection | Impedance protected |
| Frame Material | Aluminum alloy |
| Impeller Material | Plastic |
| Size | 205x205x72mm |
| Frequency | 50/60Hz |
| Current | 0.65/0.60A, 0.45/0.40A |
| Operating temperature | -10℃~70℃ |
| Storage temperature | -40℃~80℃ |
| Weight | 2000g |
| Noise | 75 dBA |
| Static pressure | 0.85/0.9 inch-H20 |
| lifetime | 50000 hours |
The different customer requirements and different raw materials will lead to different data. All designs and specifications are for reference only and are subject to change without prior notice.
The provider data are used for reference only. For future information, please contact us.
1, The fan blade is designed with advanced aerodynamics, which makes the fan artistic and efficient. The fan rotor adopts
a double-sided dynamic balance. The dynamic balance achieves G6.3.
2, The fan blade rotor and grid are all powder sprayed. The surface is bright artistic and
corrosion-resistant. The cover of the motor is also specially treated, which protects it from being oxidized and discolored.
3, The normal ambient temperature for the fan is -25 ℃ to 60℃. If the operating temperature exceeds this range, we can customize
per customer’s requirements.
4, Currently, the insulation class we supply is B and F, and the protection class is IP54. The other available operating
temperature is -40 ℃ to +60℃, -25℃ to +80℃. The motor can be equipped with a thermal overload protector.
5, we have two kinds of fan motors: single-phase and three-phase fan motors. For single-phase fan motor 220V/50Hz and 220V/60Hz are
applicable. For a three-phase fan motor, 380V/50Hz and 380V/60Hz are applicable. Moreover, we can supply motors with special
requirements, such as special voltage, dual voltage, etc.
6. The wire of the fan can be directly led out, or we can also provide various kinds of water-proof connection boxes for
customer’s selection.
Power Connection(Optional):
Terminal
Lead Wire
Characteristic Curve:
Parts:
Applicable: Manufacturing Plant, Machinery Repair Shops, etc
