AC Axial Cooling Fan Capacitor Type 220x220x60mm 110V 220V Circular Fan With Dual Ball Bearing Long Service Life
What is an AC axial fan?
Axial AC fans are a type of fan that blows air along the axis of the fan—that is, the fan's curved blades force air to move in parallel with the shaft on which the blades rotate. ...
Some of the typical applications for AC cooling fans include Industrial equipment. Manufacturing machines. White goods.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
AC Axial Cooling Fan Capacitor Type RGC22060
Energy Saving Noise Reduction Soft Wind Long Lasting
Basic Parameter:
| Model No. | Bearing | Frequency | Voltage | Current | Rated Input Power | Air Flow | Static pressure | Noise | Speed |
| (Hz) | (V) | (A) | (W) | (CFM) | (Inch-H2O) | (dBA) | (RPM) |
| RGC22060B1HA | Dual Ball | 50Hz | 100~125V | 0.28 | 32 | 480 | 1.20 | 52 | 2850 |
| 60Hz | 0.30 | 35 | 520 | 1.20 | 54 | 3200 |
| RGC22060B2HA | 50Hz | 220~240V | 0.16 | 32 | 480 | 1.20 | 52 | 2850 |
| 60Hz | 0.17 | 35 | 520 | 1.20 | 54 | 3200 |
All designs and specifications are for reference only and are subject to change without notice.
Different customer requirements and different raw materials will lead to different data.
Provider details are used for reference only. For future information, please contact us.
| Product Name | AC Axial Cooling Fan Capacitor Type |
| Warranty | 1 Year |
| After-sales Service | Online Support |
| Frame | Aluminum Alloy, Painted Black |
| Impeller | Retardant Thermoplastic In Black |
| Motor | Capacitor-Run External rotor induction |
| Waterproof Grade | IP 55 |
| Certification | CE, RoHS |
| Lifetime | 40000 Hours |
| Customized Support | OEM, ODM |
| Storage Temperature | -20℃~80℃ |
| Operating Temperature | -10℃~70℃ |
| Power Connection | Terminal, Lead Wire |
Applicable: Manufacturing Plant, Machinery Repair Shops, etc
Power Connection:
Terminal
Lead Wire

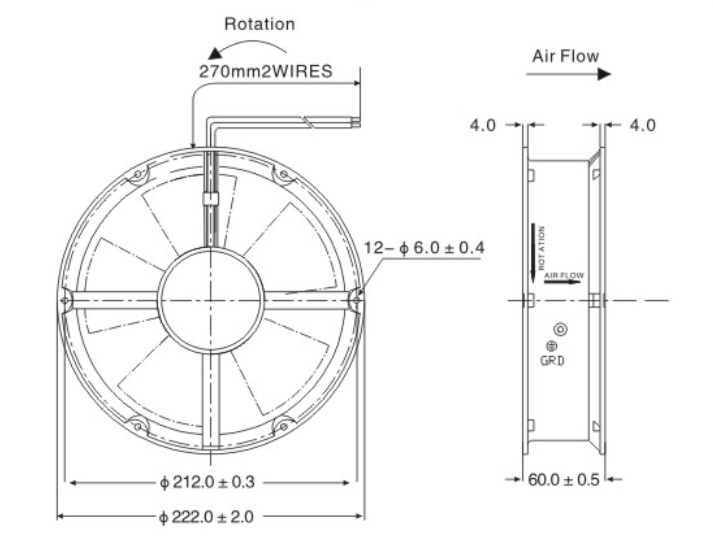

Drawing:
Characteristic Curve:
Parts:
Payment:
1.Trade Assurance: In the first order, we suggest you use Trade Assurance.
2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.
3.Western Union, Money Gram, Paypal, all available.
4.L/C: for large order.
Shipping:
1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.
2. if you have your own forwarder, please tell us the detailed information.
Q: Can you tell me if these products can be made with USA electrical standards -- to work at 120V?
A: Yes For Sure we can make it work at 110V-120V.
Q: Can you tell me if these products can be made with DC Fans?
A: Yes we can make all of our products with DC motor
Q: What is the daily output of your product?
A: Normally for one day we can produce 1000Unit in 8Hours,
In special circumstances, we can arrange a rapid assembly line, production to 2000 units.
Q: Can you customized the rebrand order.
A: Yes, we deal with rebrand orders for almost 5 years.
Q: Can we deal with ODM orders?
A: Yes, for the ODM order we can sign an NDA agreement, we will arrange R&D team to engage the ODM order.
Q: Can we have the product with a plug?
A: Yes, We can assembly with a Plug that can be used in your country.
Product Tags:
|
|
220x220x60mm 520 CFM Outer Rotor Fan Noise Reduction With Dual Ball Bearing Images
|
